Powerflex wishbone bushes
- Details
- Hits: 6189
The next job was powerflex wishbone bushes. I bought eccentric ones which the M3 had, which push the wishbone in some sort of direction that gives sharper handling. The poweflex bushes however are much thicker push the entire wishbone forward, increasing castor.
The old lolipops came out ok, I just jigsawed (ahem) carefuly through the rubber, pulled off the lolipop and sawed through the metal ring left on the wishbone. This eventually came off and job was nearly done - so I thought.
The bushes go one easily enough, they come with indentations to go over the wishbone as they are much thicker like so:

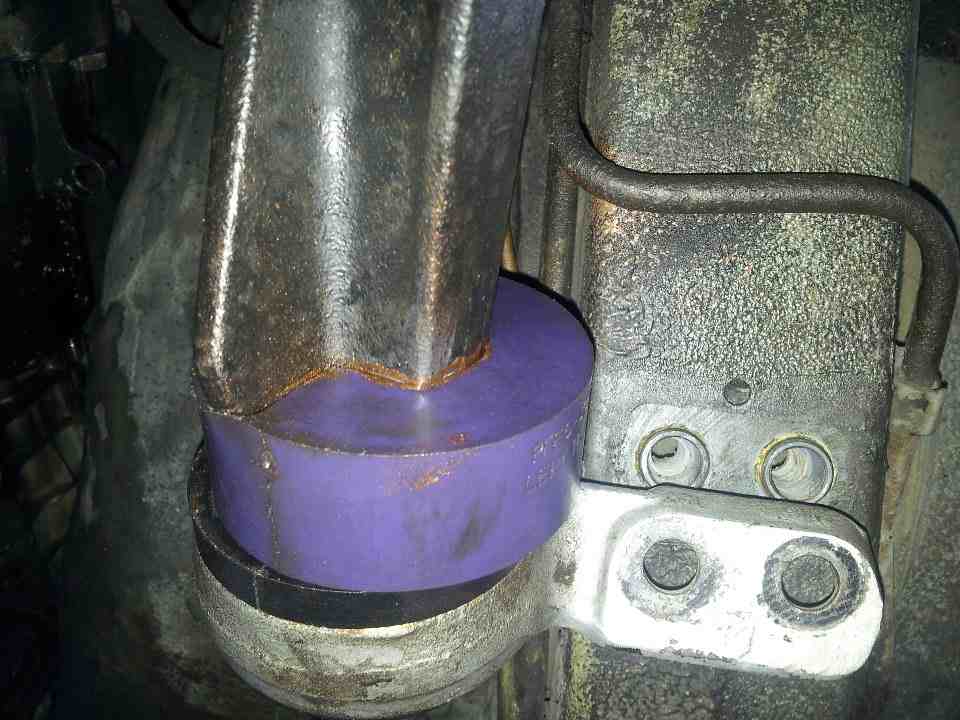

As you can see though, now the bracket won't line up. There's a bit of advice on this, from soaking the bushes in boiling water, smacking them with a hammer and wood, taking out the ball joint first to give you more wiggle room. I did see one top tip (again on the e30zone!) to use a special device called a 'tweaky bar'. This specialist device (an old screw driver, threaded bar etc), allows you to pry the bracket into place against the holes. Do the inside one first, then push the outside one back again and off you go. Took me most of a day getting nowhere before finding this tip!
It's obvious with the wheels in the air how much more castor you have, not massively back on the ground.
It's like the suspension strut is being used a bit more horizontally, which helps with high speed apparently. No complaints from me, as I went for my first road shakedown, a proper blast on a quiet road for the first time since my titting about with bushes, rear beams etc. Wow, it's far better! No rear wheel trolley steering, I just need some decent tyres to really get the full benefit, but it's a fantastic improvement.
E30 Clutch slave change
- Details
- Hits: 30777
Right got stuck into the clutch this weekend. Decided to do a small job halfway through, which turned out to waste most of my day - more on that later.
Basically, found the car seemed very eager to move forward. By the third gear change I relised something was amiss when I struggled to change gear. The next change into first at a roundabout to go, didn't happen at all. So stuck my hazards on, and had an emergency crisis meeting with myself to determine what to do next. Woman beeps behind me beckoning me to go, so I stick my hand put the window and wave her past. Still fiddling trying to get in gear she beeps again waving frantically. I'm fairly certain that's the universal signal for "go passed me I've broken down", obviously someone needs to tell the dozy mare... Anyway, had a brainwave, switched off the engine then put her in first and started up. Got me home. The pedal was completely limp, so I was thinking surely there was something between the clutch pedal and clutch instead of fluid, like air!

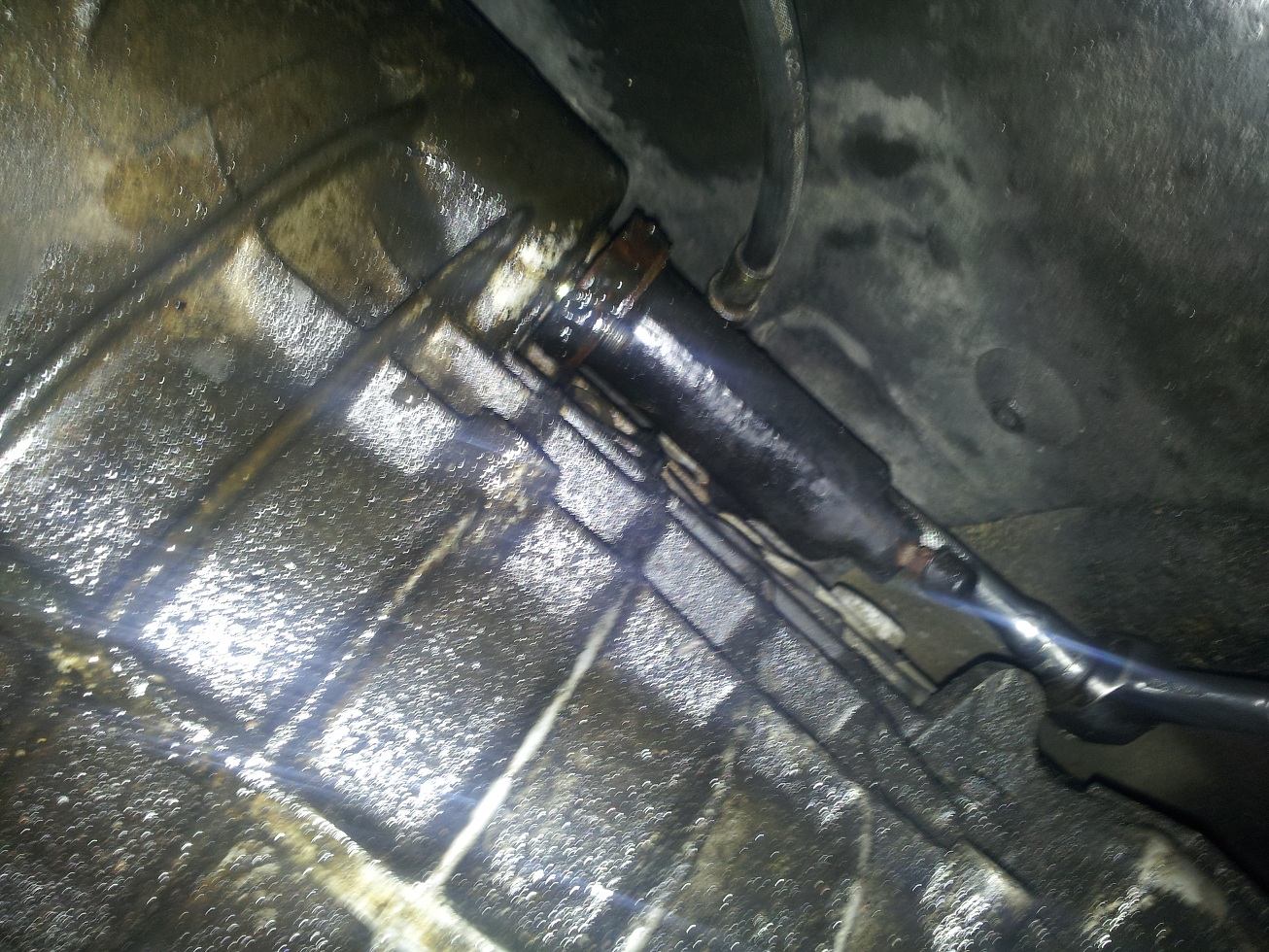

A diagnosis back home and some advice from the e30zone, showed the issue was likely to either be the slave cylinder or master. The master is on the clutch pedal, and showed no signs of leaking. In fact, digging through the car's history (of which there are a hell of a lot of Sewell of Bishop Stortford reciepts!), showed it being replaced 30 thousand miles earlier. So looked at the slave which is attached to the gearbox, and found a fair bit of fluid near it. Put a bit more fluid in the reservoir and pushed the clutch pedal (completely lifeless) a few times, and sure enough more fluid dripping from the gearbox. So a quick trip to eurocarparts later and a new cylinder ready to go on. It has a stubborn brake union nut so plenty of heat, WD40 and a11mm flared spanner coupled with a hammer to shock it a bit, and off it came. It's easier to take the cylinder and hose off together than trying to get the hose off the cylinder in your hand.

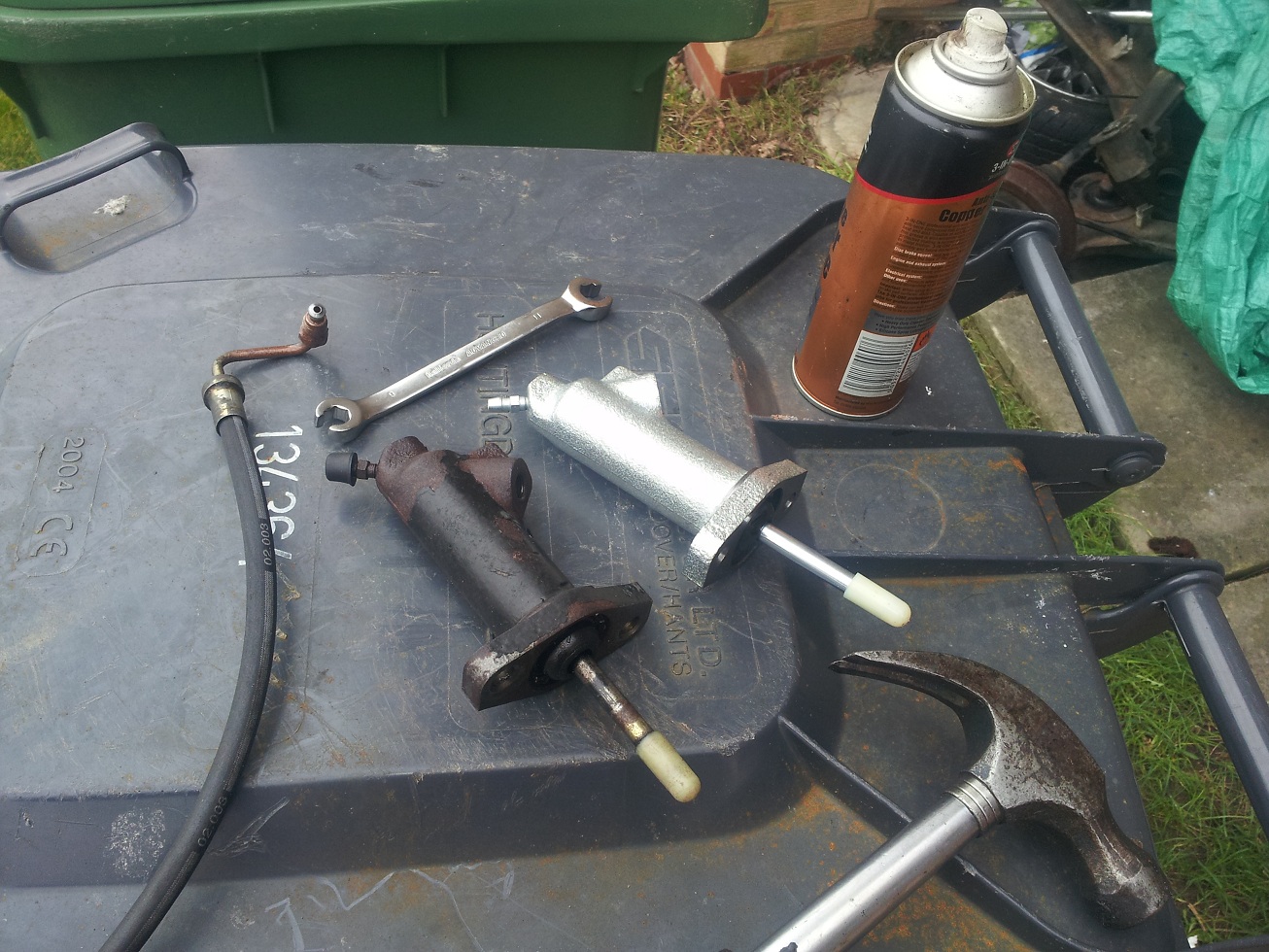

The above picture tells you what you need to know: here's the old vs new cylinder, use a flare spanner on the union nut, shock the spanner with a hammer, and spray some copper grease on the new nut to help in the future. Bled the system, eventually. When the fluid is bubble less, tightened up the bleed valve, it was a relief to feel the pedal go hard again! A quick test revealed a working clutch once more, and a nice easy gear change.
Then there was the "little" job I thought I'd tackle. I bought some powerflex wishbone bushes a while back and it was time to fit them. What a drama....
Back on the road
- Details
- Hits: 6227

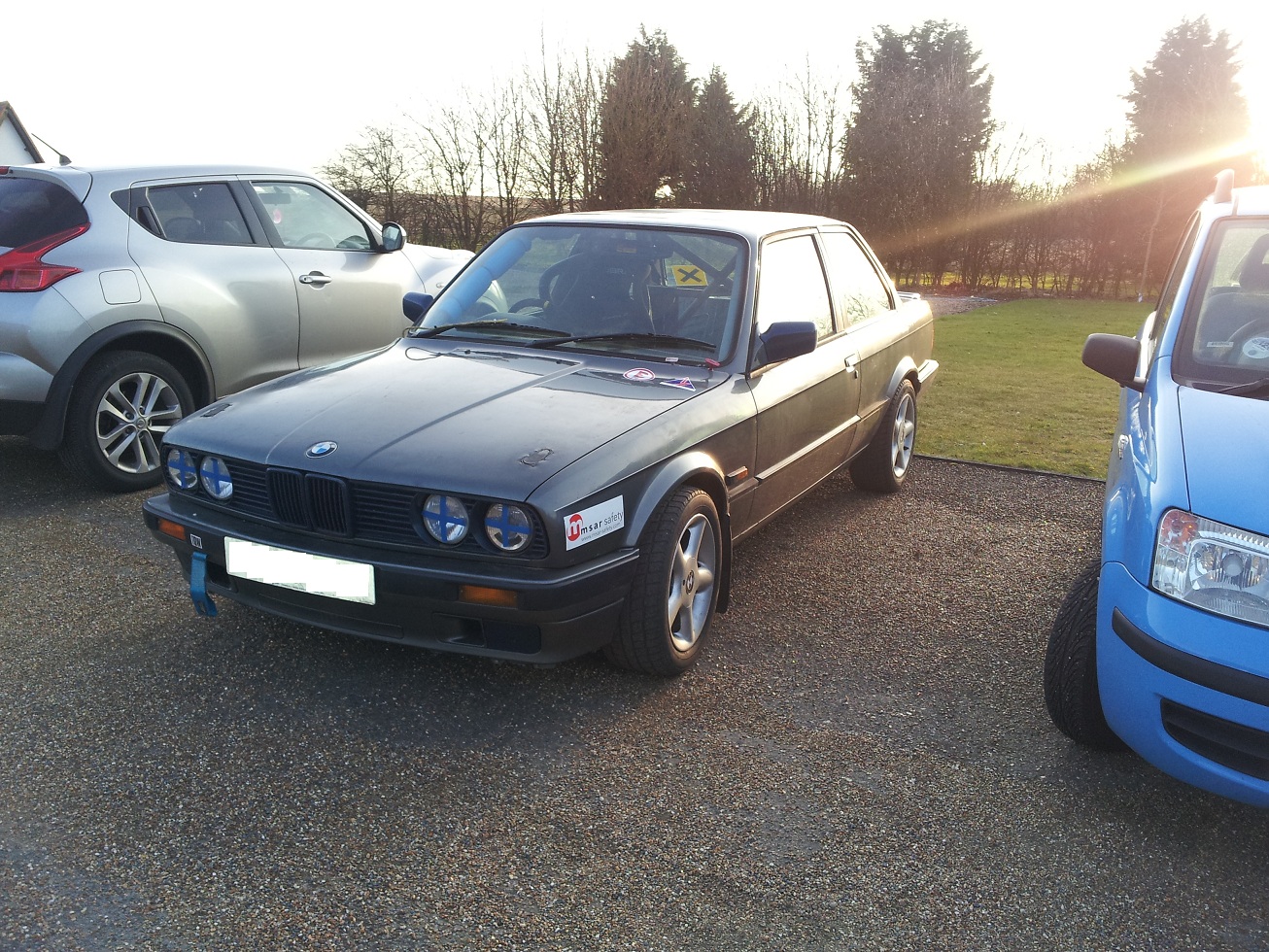

So after a weekend of breaking the prerequisite amount of tools, slicing open my thumb, and generally spending one more day getting cold, I've got the car back to MOT status. It's been off the road for a year and a half now, so I was counting down the days to get it back on the road.

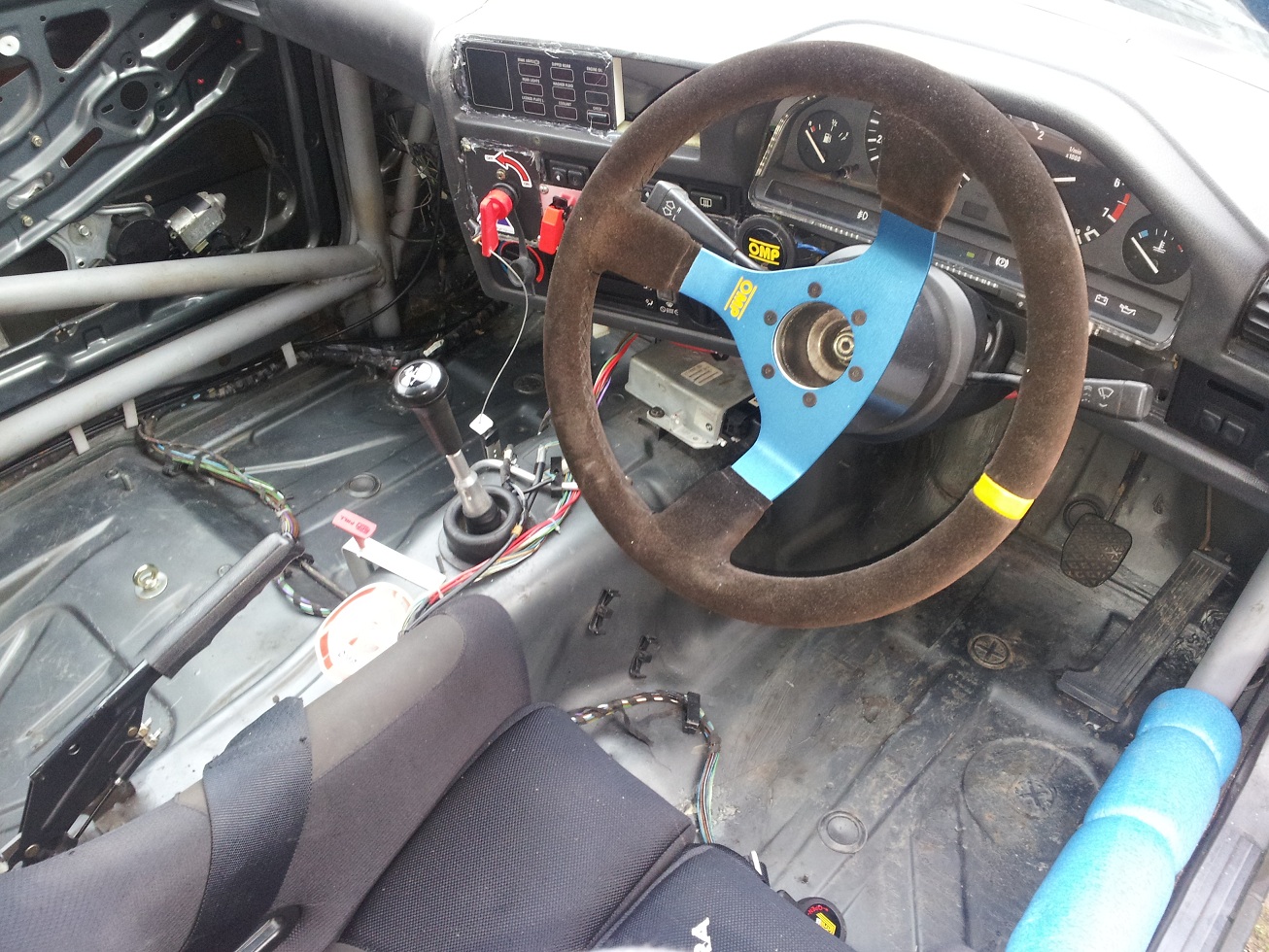

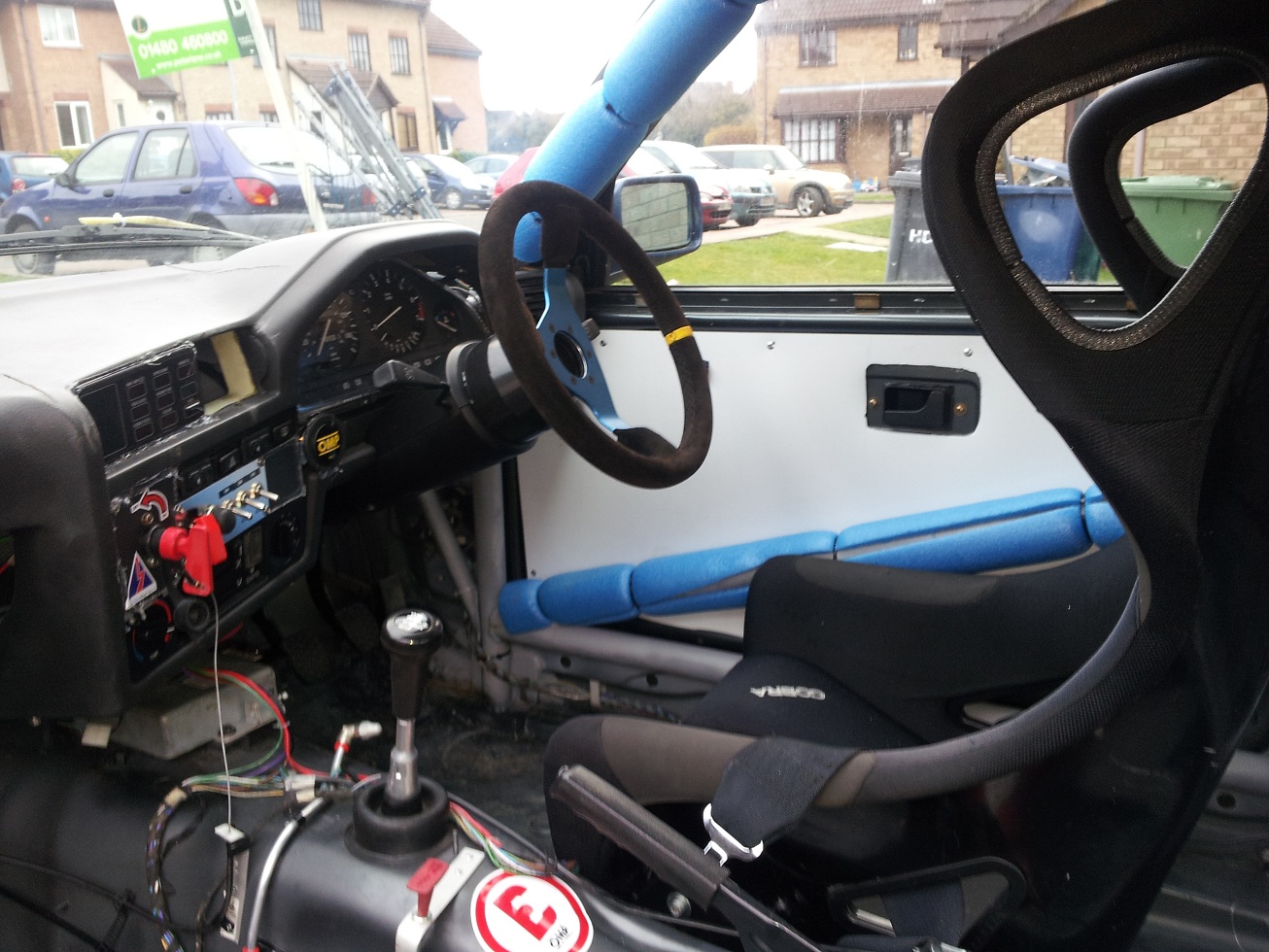

There was a decent checklist to get through, first off was a driver's side door card. You can't really have interior that could slice you open if you see the passenger door. I bought some sheet plastic from demon tweaks and got cutting. You can also see the check panel simply glued in place with the glue gun. I thought wow that's pretty solid, so after failing twice to get the OMP horn to work from the wheel, I just glued that in place too. Some house keeping then, so handbrake light on the dash was a loose bulb, some messy wires near the pedals and where the glovebox was were cable tied, and the ECU was bolted down. I gave the interior a clean and checked all the lights.
I also bled the remaining brake, eventually with a bit of pipe and one way valve. Ingenious kit well recommended, put my (now broken!) Gucci pump to shame. So after all that, the time came to drive it to the garage for it's test. Just a silly little side story, when I got to the garage I didn't know whether it had passed or not, only that it was ready. Got there, and whilst the lady went to find the keys, I read an utter horror show of a refusal sheet. Assuming it was mine of course. "Offside rusted this" and "something in poor condition that" and the sheet carried on. I was pretty relieved when I read the top of the sheet which read "Transit Van", "Ford" !!!
So the mechanic came to chat about the car, told me about a battery tray hole (which I've hammerited up anyway), and told me after his refresher tester course, technically my race seat was illegal, according to some garbage about it not being the original BMW seat. Thankfully, that bit was overlooked. Therefore, all WRC rally drivers break the law by driving from stage to stage. I think this was before VOSA came back after having taken a sensible pill, and released "clarification". Other than that, my car had a clean bill of health!

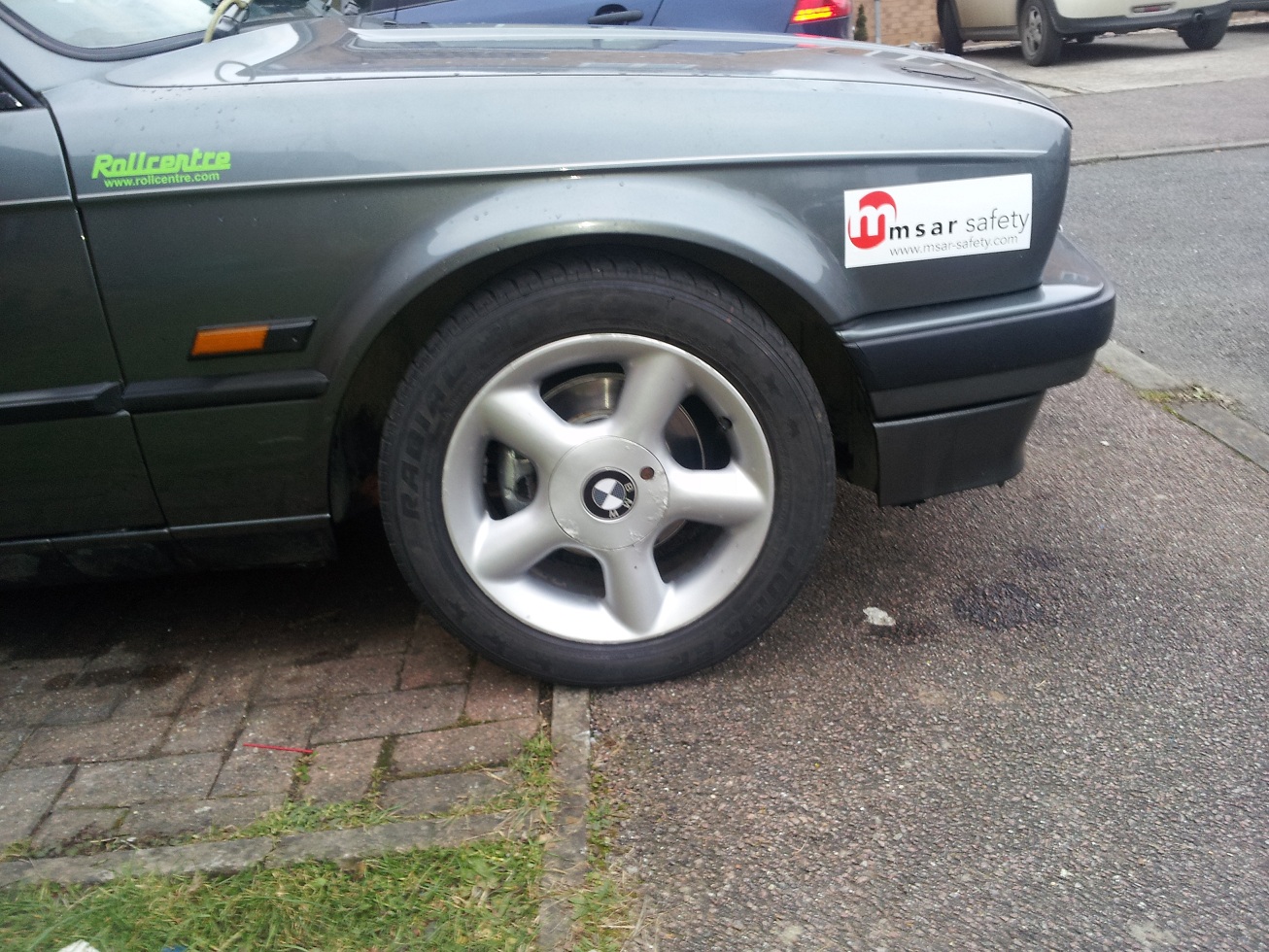

So to drive, obviously I very gingerly drove to the garage, stopped after half a mile and had a look round to ensure everything was still attached. One of the front wheels has a wobble which feels very much like a wheel/tyre out of balance. But everything feels good, the back is much tighter with the rear beam bushes doing their job. Haven't opened the taps properly yet, but leaving the revs rise a few times - it's good to hear the straight 6 back at work again.
